Change Description:
The
ice along the Antarctic Peninsula has been observed to be disappearing
in a series of retreats over the past 30 years. Climate in this area is
warming at approximately 0.5 degrees Celsius per year following a trend
that is believed to have been occurring for at least the past 50 years
Generally this retreat has occurred as icebergs break away from the
oceanward edge of the ice.
More recently a new pattern has been observed. Scientists have been
closely monitoring the Larsen Ice Shelf since 1995 when a large portion
of it (Larsen A) dramatically disintegrated. In 2002 another similar
event occurred at Larsen B (see image series below). In contrast to the
slower pattern of calving - where pieces of ice break away at the edge
of the shelf – these two events occurred over a large area and in a
relatively short period of time. In the case of Larsen B 3,250 square
kilometers of the ice shelf shattered into a plume of 1000s of icebergs
in a little over a month. Over the last 5 years approximately 40 per
cent of Larsen B has disintegrated--5,700 square kilometers. Larsen A
is believed to have been in place for over 2000 years at the time of
its collapse and Larsen B is thought to have been still older.
Scientists have developed a theory to explain this new phenomenon of
catastrophic collapse which links it to summertime warming and the
pooling of melted water on the surface of the ice shelf. The pooling
water is believed to accelerate the expansion of crevasses and lead to

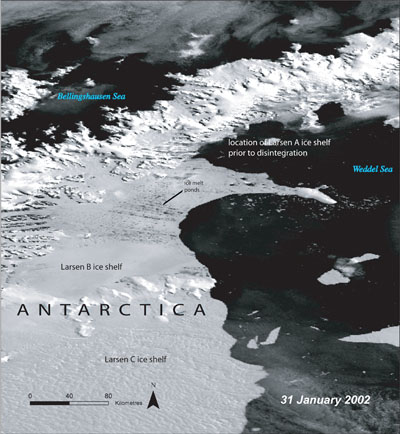

the breakdown of the ice shelves. In the case of Larsen B, ponds of
melt water can be seen in the remote sensing images taken shortly
before the collapse occurs, lending credence to this theory. Melt-water
ponds can now be seen forming on Larsen C in more recent images
suggesting the potential for a similar collapse there in the future.
Photos

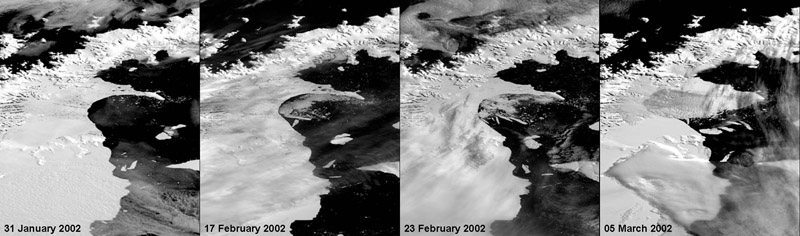

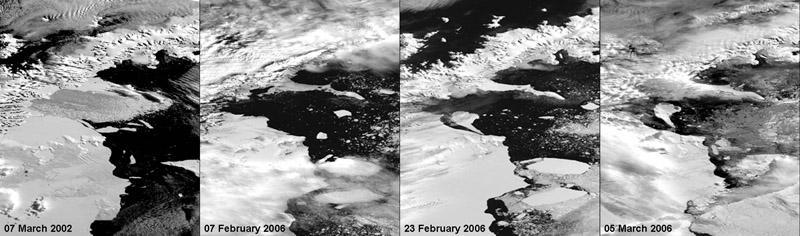

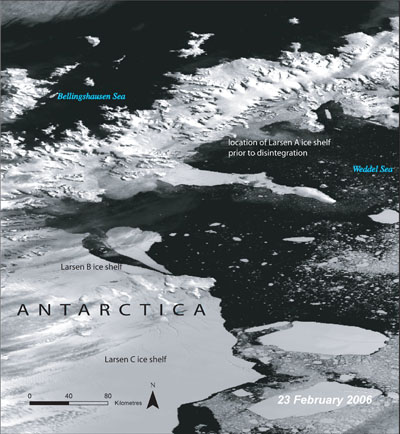

These
eight MODIS images show the collapse of Larsen B in spring of 2002 and,
more recently the calving of large icebergs to the north of Larsen C.
Credit: UNEP/GRID Sioux Falls, from NASA MODIS data.

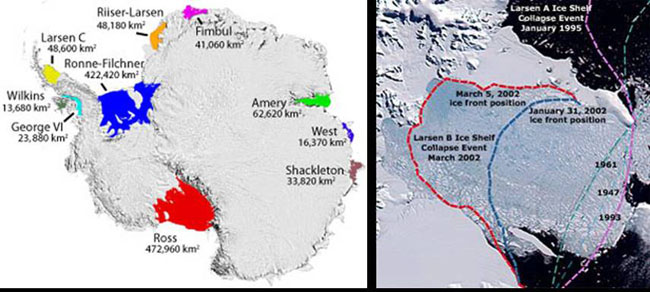

Larsen
Ice Shelf is one of Antarctica’s several major ice shelf areas (left
image). Larsen B experienced a catastrophic collapse in the Spring of
2002 (right image). Credit: Ted Scambos, NSIDC.
